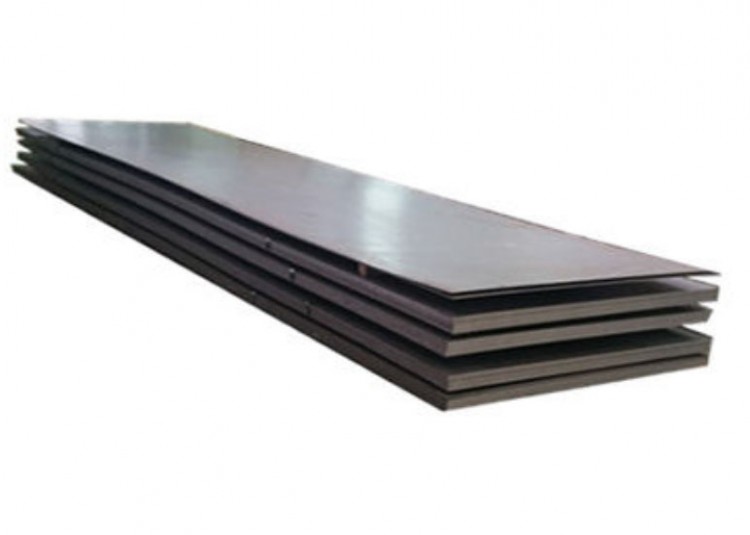

Mild/Carbon Steel Plates
Mild/Carbon Steel Plates The commercial steel specifications are suitable for general engineering applications where moderate forming, bending and drawing are involved. These steels are produced to analysis specifications as described below. The commercial steels are not recommended for drawing applications or structural applications where the mechanical properties of the steel are of paramount importance.
Table : Chemical composition specification (ladle analysis, percent)
|
Thickness t (mm) |
C Max |
Mn Max |
P Max |
S Max |
Si Max |
|
t 4 |
0,15 |
1,00 |
0,035 |
0,035 |
0,30 |
|
t 4,5 |
0,25 |
1,60 |
0,040 |
0,035 |
0,50 |
Applications :
- Truck body

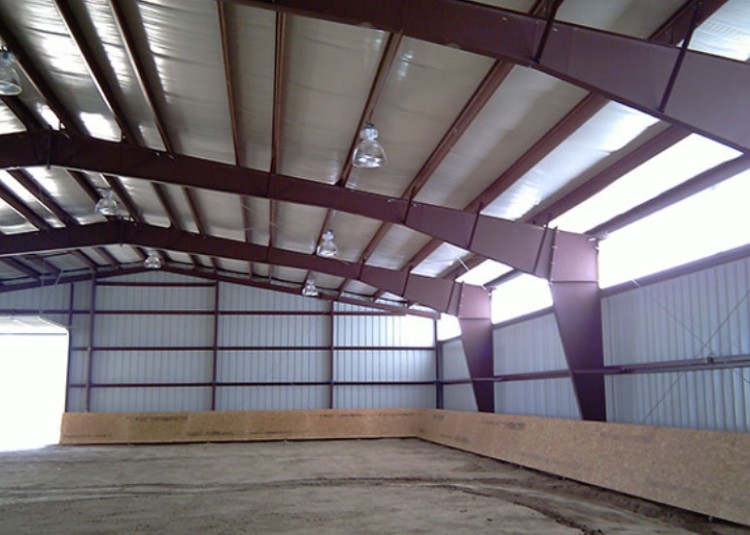

- Building structure

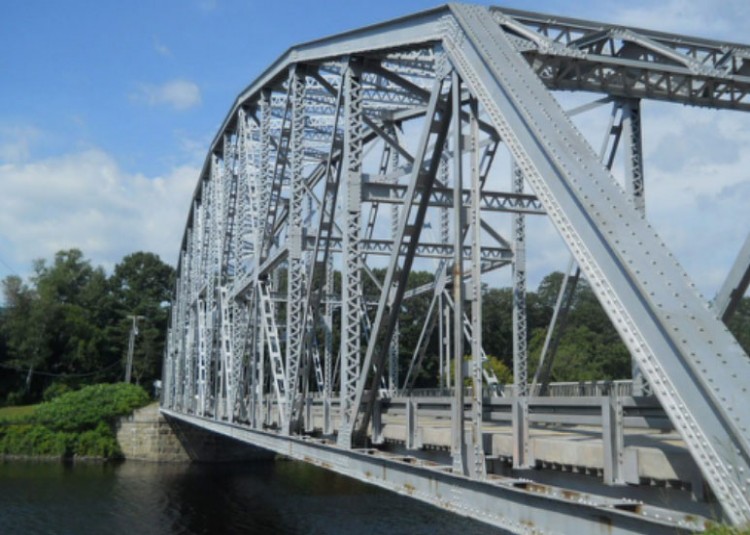

- Permanent bridge abutments
- Retaining walls for underpasses

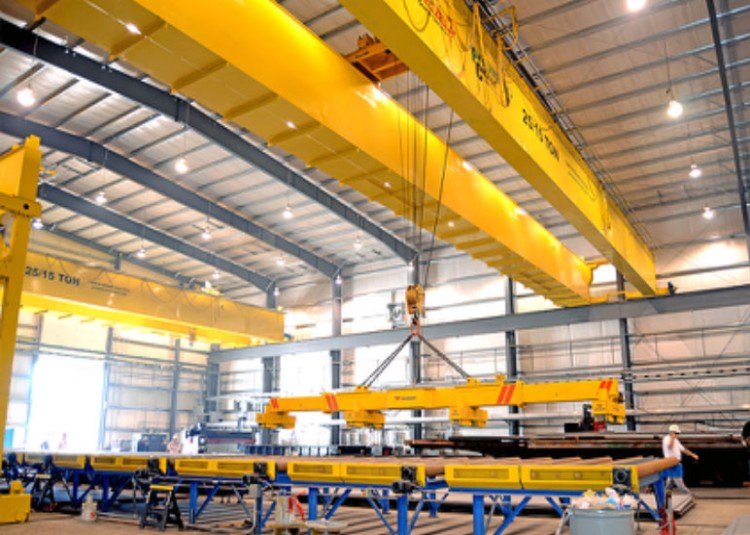

- Gantry crane
Specs and sizes :
Spec by JIS : SPHC/SS400/SM490
|
Thickness (mm) |
Width (mm) |
Length (mm) |
|
1.8mm – 150mm |
1000 - 3500 |
3000 - 12000 |
